Thursday, March 12, 2009

8Mhz IF notes from VK3EPW

Regular readers will have seen that I've been publishing construction notes from Peter, VK3EPW for his multi-band transceiver.

He's just sent me detailed notes on the 8Mhz IF section which I've incorporated into the original posting here.

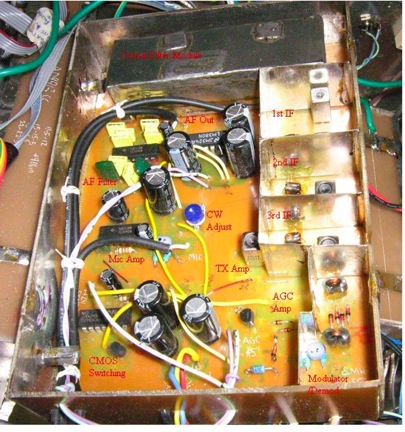

Aside from the electronics theory, Peter's construction is simply wonderful with circuit boards laid out manually with Dalo pen and shielding compliments of Milo tins.


Thanks Pete.
